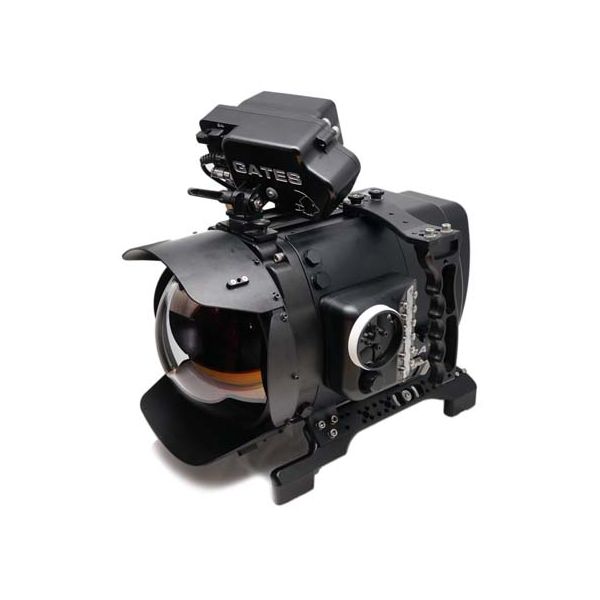

Gates MINI LF Housing Body
Cinema, TV, Natural History, whatever: configure the MINI LF Housing to suit your needs. Diver independent operation or complete surface DP control. Virtually any lens, cinema / anamorphic / DSLR. 8 and 10" Dome / Flat Ports. And shoot either ARRI ALEXA Mini or Mini LF cameras.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
Like it's predecessor, the MINI LF is a deeply integrated marine imaging system, blurring the lines between housing and camera. Twelve user-assignable controls interface directly with the ARRI Mini allowing access to frequently used functions like white balance, peaking, display overlay, and frame rate. Gates familiar mechanical Focus / Iris / Zoom controls provide precision handling of hundreds of LPL, PL, Anamorphic and DSLR lenses with the same adaptable Lens Gear Drive system found in the Gates cinema-grade family.
When setup with Gates SPR80 Stackable Port Ring system, the MINI LF Housing is a compact kit. Travel friendly in two carry-on size cases. The larger SPR110 Stackable Port Rings accommodate ARRI cForce mini motors, giving the topside DP full lens and camera control. Add SDI surface video for complete surface operational command and control.
The MINI LF is Gates through-and-through: durable machined aluminum, stainless construction; clean, uncomplicated, user friendly design; Gates precision ports for clear, sharp images; extensive line of accessories and custom configurations; and Seal Check II for housing integrity verification. Experts know that failure is not an option, so they never take a chance…. they take a Gates!
Key Features Gates MINI LF underwater housing
EXTERNAL MONITOR HOUSING (INCLUDED)
The GATES ST5 External Monitor is a compact 5" / 125mm HD display with Corner Controls for peaking, vectorscope and more.
USER-ASSIGNABLE CONTROLS
for direct access to white balance, frame rate and many others. List of User-Assignable Functions
EXTENSIVE LENS SUPPORT
Virtually any lens is supported MINI LF Housing. LPL, PL, Anamorphic, DSLR.
GATES Lens Compatibility Reference
Gates Recommended Lenses for Dome and Flat Ports.
STACKABLE PORT RINGS
SPR's are the ultimate in flexibility. Any Cinema and DSLR lens supported. SPR80 size for lightweight travel, SPR110 for cinema and LCS motors.
ADJUSTABLE GRIPS
Adjust the handles for perfect grip and convenient access to controls.
QUICK MEDIA AND BATTERY CHANGE
Flip up the V-Lock battery for fast CFast swap on the ARRI Mini.
CLEAN, UNCOMPLICATED DESIGN
User friendly controls are 100% mechanical -- no complicated mechanisms or electronics to fail.
PRECISION PORTS™
Quality optics means clarity, sharpness and NO vignetting (cutoff dark corners) to spoil your images.
ALEXA MINI Port Options System Chart
ADJUSTABLE CONTROLS
Set the Focus / Iris / Zoom control just the way you like: close, mid or stacked knobs make fine lens adjustments easy.
ADJUSTABLE BUOYANCY AND TRIM
Add /remove trim weights for ideal buoyancy and balance -- a key to stable, fluid shots.
SEAL CHECK II
The Gates Seal Check II is included with the MINI LF Housing and assures housing integrity before entering the water. Learn more....
Specifications Gates MINI LF underwater housing
CONTROLS (ALL MECHANICAL)
- Power On/Off
- Record / Standby x2 (Remote & Manual)
- Assignable x 12. List of Assignable Functions
- Direct lens coupled (manual) Focus
- Direct lens coupled (manual) Iris
- Direct lens coupled (manual) Zoom
DIMENSIONS: BASIC SHELL (PRELIMINARY)
Transport size with 8" dome, PR126
- 18″ L x 11″ H x 11.6″ W (15.5” w/Handles)
- 46 cm x 30 cm x 30 cm (39 cm)
CONSTRUCTION
- Machined Aluminum, Type III Hard Anodized finish.
- Stainless steel hardware.
DEPTH RATING
- 250 feet / 76 meters.
WEIGHT IN AIR (PRELIMINARY)
- 17 lbs / 7.8 kg (Housing only, transport)
WEIGHT IN WATER
- Fully adjustable buoyancy / trim
BATTERIES
- V-Lock type. Contact Gates for non-standard battery size compatibility.
INCLUDED ITEMS
- ST5 External Monitor shell only (StarLite monitor not included !!)
- Pelican Case
- Tool & O-Ring Kit
EQUIPMENT REQUIRED
(Basic set. See Supported Equipment for more info)
- Camera: ARRI ALEXA Mini LF or Mini original
- ARRI General Purpose IO Box GPB-1 (Item # K2.0007642)
- Recording Media (CODEX Compact Drive or CFast Card)
- Transvideo StarLite LCD Monitor (for ST5 External Monitor)
- V-Lock type battery
- LENS of choice. GATES Lens Compatibility Reference
| Max. depth | 75 meters |
|---|---|
| Camera brand | ARRI |
