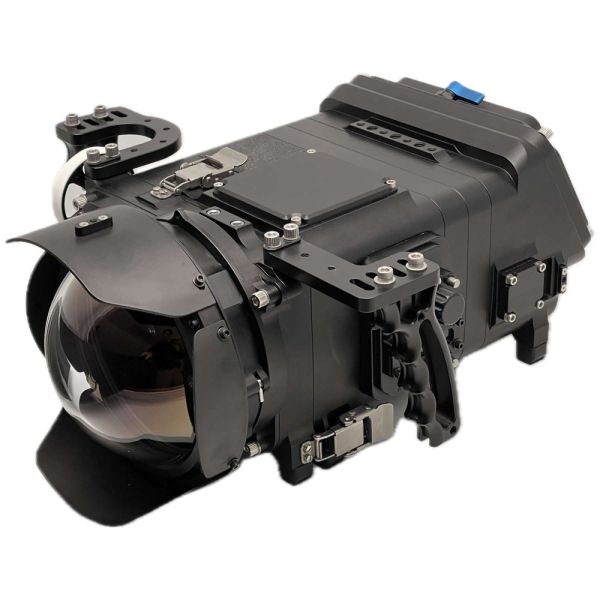

Gates housing for Canon ML-105 [0205-10-610]

Like it's predecessor Gates ME20 Housing system, the ML-105 is an ultra low-light underwater imaging system, capable of operating in environments nearly absent of light. Gates ML-105 Housing is designed to push the boundaries of underwater motion imaging, revealing natural bioluminescence, moonlit reefs, luminescent marine critters (like lanterneye fish), dimly lit caves and other light challenged scenes without the aid of additional, artificial lighting.  Such breakthrough imaging is enabled by the Canon ML-105 camera, capable of incredible low light performance over 4 million ISO.

The Canon ML-105 camera is a remarkable 50% smaller than the ME20.  This means a considerably smaller housing system with an integrated, rear-viewable 5.2 inch Atomos Ninja monitor / recorder.  And unlike the ME20, the ML-105 Housing includes Gates GCC Command / Control module, providing direct access to camera functions.

Exploring frontiers in the underwater realm, the new Gates ME20 Housing pairs Canon ultra low light technology with Gates legendary reliability.

The seasoned professional will recognize many signature features in the Gates ML-105 Housing: precision mechanical focus / iris control of any PL or Canon EF lens; durable machined aluminum and stainless construction; clean, uncomplicated, user friendly design; Gates precision ports for clear, sharp images; extensive line of accessories and custom configurations; and Seal Check Lite for housing integrity verification.  Experts know that failure is not an option, so they never take a chance…. they take a Gates!

Fully Integrated Monitor / Recorder
Comfortable 15° view angle and daylight-viewable, Gates ML-105 supports Atomos NINJA Monitor / Recorder.

Compact, Travelable, Lightweight
ML-105 camera is 50% smaller than the ME20 predecessor.  Which means the Gates ML-105 Housing is small and backpack-ready.

Complete COMMAND / CONTROL
Dedicated, direct connect camera control at your fingertips.  Iris, ISO, shutter and more.  GCC is also user update-able with feature enhancements and camera firmware changes.

Precision Ports™
ML-105 utilizes the entire Gates suite of 6, 8 and 10" dome and flat ports.  AR coated glass or acrylic / perspex options.

Clean, uncomplicated design
Gates design are user friendly, reliable, and field serviceable.
Simplicity = Reliability.

External Monitor (Optional)
Need a top-mounted monitor with full swivel / tilt capability?  You got it.  ML-105 offers several External Monitor options.

Extensive Lens Support
ML-105 Housing accommodates a wide variety of Canon lenses, including CN-E low light primes.

GATES Lens Compatibility.
Gates Recommended Lenses for Flat and Dome Ports

Adjustable Buoyancy and Trim
Add /remove trim weights for ideal buoyancy and balance -- a key to stable, fluid shots.

Surface Command / Control (optional)
Gates ML-105 provisions for surface tether using Canon RC-V100 remote control.  SDI surface video also available.

Seal Check Lite
The Gates Seal Check Lite assures housing integrity before entering the water. Know before you go.

Specifications (Preliminary):

Controls:

    Master System Power On/Off
    2x Direct Coupled Lens Gear Drives
    Run / Stop (Switch activated, right thumb)
    Gates GCC Command / Control Module (direct, fast camera function access)
    LCD Power On/Off

Dimensions:

    ML-105 Dimensional Drawing

Construction:

    Machined Aluminum, Type III Hard Anodized finish
    Stainless steel hardware

Depth Rating:

    250 feet / 76 meters

Weight in Water:

    Adjustable Buoyancy / Trim

Weight in Air:

    Variable depending on system setup
    ~20 lbs / 9 kg in empty transport configuration
    ~25.7 lbs / 11.7 kg with camera, 98 Whr battery, Canon 16-35 Lens, Atomos NINJA LCD / Recorder
