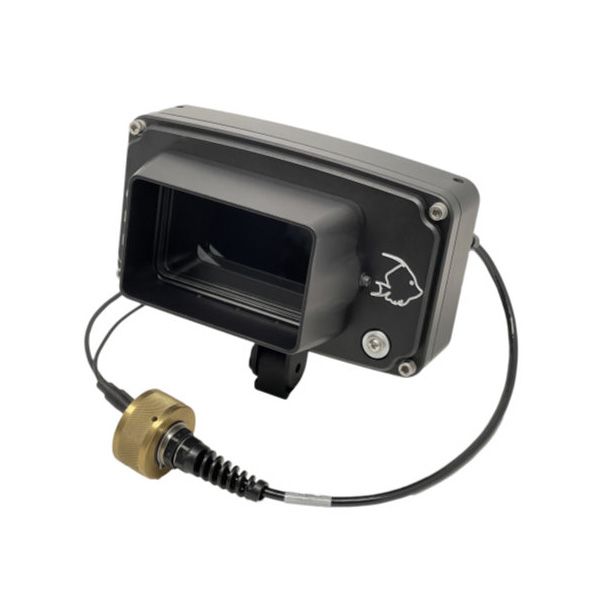

Gates EM503 External Monitor housing [0235-10-601]
EM503 external underwater monitor housing for use with Arri Alexa Mini / Mini lf , Arri Alexa , Deep Weapon - Raptor Flex4k
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight. Dedicated Power / F1 / F2 buttons are readily accessible next to the shaded 5" display, and the adjustable base can tilt / swivel to any position for the perfect viewing angle. SDI means simple, robust interface and broadly compatible with a variety of Gates Housings. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from inside the main housing shell. Both versions can be neutrally buoyant with included trim floats -- no 'turtling'!
Of course, Gates EM503 Underwater Monitor Housing comes with 'bulletproof' construction.
Specifications:
DISPLAY
- SmallHD 503 Ultrabright LCD
- Illumination: 2200 nits
- Widescreen 5 .0 inch / 125 mm color LCD
- 1920x1080 resolution
CONTROLS
- Power
- F1 and F2 assignable
DIMENSIONS
- EM503 Dimensional Drawing (to be released)
INPUT FORMAT
- SDI
MATERIAL
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
WEIGHT
- Dry: 3.7 lbs / 1.7 kg (no LCD, base configuraiton)
- In Water: Neutral (w/included trim float)
DEPTH RATING
- 200 feet / 61 meters
CABLE / CONNECTORS
- Marine-grade multi conductor cable
- Gates Pass Through type or MultiConn type
POWER SOURCE / RUN TIME
- Powered by camera battery: run time variable depending on battery size.
- Optional: Powered by 2x SONY NP-F970 batteries or equivalent size (max 2.25 x 2.88 x 1.5" / 57 x 73 x 38 mm)
Run time more than 4 hours.
EM503 Compatibility & Replacement Cables:
MINI/ MINI LF / ALEXA / FLEX4K HOUSINGS
- Gates EM503 Small Pass-Thru type. Specify 5000-94-297 BCP ASSY, EM503 SM PASS THRU TYPE
- Standard cable length (housing to monitor): : 12in / 30 cm. Custom lengths available.
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
DEEP WEAPON / DEEP RAPTOR HOUSING
- Gates EM503 Large Pass-Thru type. Specify 5000-94-296 BCP ASSY, EM503 LG PASS THRU TYPE
- Standard cable length (housing to monitor): : 17in / 43 cm. Custom lengths available.
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
HOUSINGS USING GATES MULTICONN (GMC) BULKHEAD CONNECTOR SYSTEM
- Gates EM503 GMC type. Specify 5000-94-299 GMC ASSY, EM503 MON and 5000-94-300 GMC ASSY, BLKHD, EM503
- Standard cable length (housing to monitor): 17in / 43cm
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
| Max. depth | 60 meters |
|---|
