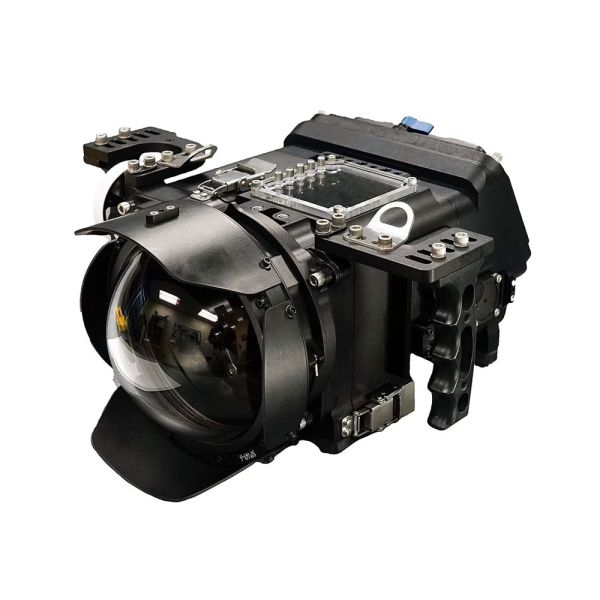

Gates Deep Komodo (DK) housing for RED Komodo and Ultra 5

Gates Red Komodo Underwater Housing Deep Komodo with Integrated SmallHD Ultra 5 Housing and Seal Check Lite


DEEP KOMODO is everything you expect from GATES: Simple, reliable, "bulletproof". Seal Check peace of mind. Gates plug-and-play Precision Port and Stackable Port Ring strategy.

And yet, barriers are broken with DEEP KOMODO. At 25 lbs / 11 kg fully rigged, DK is a backpack-ready, performance-to-size powerhouse. Control? The Gates Command Control module = full system authority, fully integrated, at your fingertips. Iris, menu navigation, assignable. Field update-able as KOMODO firmware evolves, too.

Optimized for diver operation, DEEP KOMODO is balanced/trim out of the box, yet fully adjustable to different lenses/configurations. A vast range of mirrorless, DSLR, specialized, (Laowa macro probe) and compact PL (think Zeiss) glass are compatible with DEEP KOMODO's versatile Lens Gear Drive system -- a genuine innovation.

With DEEP KOMODO there's no 'nickel and diming' you with extra needed gear for an operational system. Seal check, spare bits, tools -- it's all there. Only Gates offers this level of commitment to your success, to your ROI.

When failure is not an option: Don't take a chance....take a GATES!


KEY FEATURES:

COMPLETE COMMAND / CONTROL
Dedicated, direct connect camera control at your fingertips. Iris knob, menu nav, and 4x presets in the Gates COMMAND / CONTROL module (which is field update-able as KOMODO firmware evolves). Plus 12 ATOMOS LCD touch-screen controls.


FULLY INTEGRATED MONITOR
Comfortable 15° view angle and daylight-viewable, DEEP KOMODO offers two integrated LCD options: SHINOBI SDI LCD or SmallHD 503 Ultrabright (2200 nits brightness!)


CLEAN, UNCOMPLICATED, RELIABLE DESIGN
Another Gates mantra: simplicity = reliability: Convenience details are nice, but not at the expense of function, purpose, results.


SEAL CHECK LITE
Don't rely on a binary red/green light to keep your precious camera safe. Seal Check Lite's precision vacuum gauge puts you in charge of the go / no go decision. When unexpected things happen (and they do happen), Seal Check Lite is a troubleshooter, locating leaks and rapid return to action.


EXTENSIVE LENS SUPPORT
Gates unique Lens Gear Drive system is versatile, adaptable to DSLR, mirrorless, compact cinema (e.g. Zeiss) and specialized (Laowa macro probe) glass.

Further, DK is evolved from Pro Action / Pro Explore to accommodate larger lenses, up to 108mm gears / 136 teeth.


IT'S INCLUDED
No buying piece-by-piece. DEEP KOMODO includes Seal Check Lite, spare kit, tool kit, Lens Gear Drives, system cabling, carry handle, and more. Just add Port(s) and Port Ring(s) specific to your application to make a complete kit.


BACKPACK READY
Setting the bar in performance to size, DEEP KOMODO weighs in at 25 lbs / 11kg fully rigged with camera, batteries, LCD, DSLR lens and SP60-6 AR coated glass Dome Port. Ideal for the traveling underwater professional.


60 AND 80 SERIES PRECISION PORTS
DEEP KOMODO supports the entire Gates suite of 6, 8, and 10" dome and flat ports. AR coated glass or acrylic / Perspex options.


ACCESSORIZE AND CUSTOMIZE
A range of accessories is available to suit the diverse needs of cinema, Natural History, broadcast TV, research, and military applications.


EXTERNAL MONITOR OPTION
Really want a top-mounted monitor with full swivel/tilt capability? You got it. The Gates NVS External Monitor, which accepts the same ATOMOS SHINOBI SDI LCD used in DEEP KOMODO.


SURFACE SUPPORT
DEEP KOMODO would not be complete without consideration for surface tethers. 2X Universal bulkhead adapters utilize both Gates MultiConn and Pass-Through designs for SDI and data connections to the surface.


SPECIFICATIONS

CONTROLS:

    Master System Power On/Off
    2x Direct Coupled Lens Gear Drives
    Run / Stop (Switch activated, right thumb)
    Gates Command / Control Module:
    IRIS
    Menu navigation (MENU / SELECT /▲ / ▼ / ► / ◄)
    4x Presets/Assignables
    ATOMOS LCD - all lower screen focus/exposure touchscreen buttons
    ATOMOS LCD - overlay toggle on/off
    ATOMOS Power


CONSTRUCTION:

    Machined Aluminum, Type III Hard Anodized finish
    Stainless steel hardware


DEPTH RATING:

    250 feet / 76 meters


WEIGHT IN WATER:

    Fully Adjustable Buoyancy / Trim


WEIGHT IN AIR:

    Variable depending on configuration
    ~25 lbs / 11 kg with
    SP60 Dome Port, 2x SPR60-200 Stackable Port Rings, KOMODO Camera
    2x Sony NP-F970 Batteries
    ATOMOS SHINOBI SDI LCD
    Canon 16-35f/2.8L III USM lens


CAMERA EQUIPMENT REQUIRED:

    Cameras: RED KOMODO
    Camera Accessories: None
    Media: CFAST Media compatible with KOMODO
    Camera prep / setup only (optional): RED CONTROL iOS App
    Battery Options
    2x Sony NP-F970 Batteries or equivalent
    See Supported Equipment for details

    LCD
    ATOMOS SHINOBI SDI LCD + ATOMOS Battery Eliminator
    SmallHD 503 Ultrabright

    Lenses
    DSLR (Canon EF / Nikon F), Mirrorless (Canon RF), and Compact Cinema Glass (0.8 MOD or 32 Pitch)
    Laowa Macro Probe (with Gates MLA60 Macro Probe Lens Adapter)
    Max Lens Envelope:
    SPR60 Port Rings
    Max lens overall OD: 5.6 in / 142mm
    Max lens gear OD: 4.25 in / 108 mm / 136 Teeth
    Min lens gear OD: 3.1 in / 79 mm / 100 Teeth
    SPR80 or PR80 Port Rings
    Max lens overall OD: 7.5 in / 190mm
    Max / Min gear OD: same as above.
