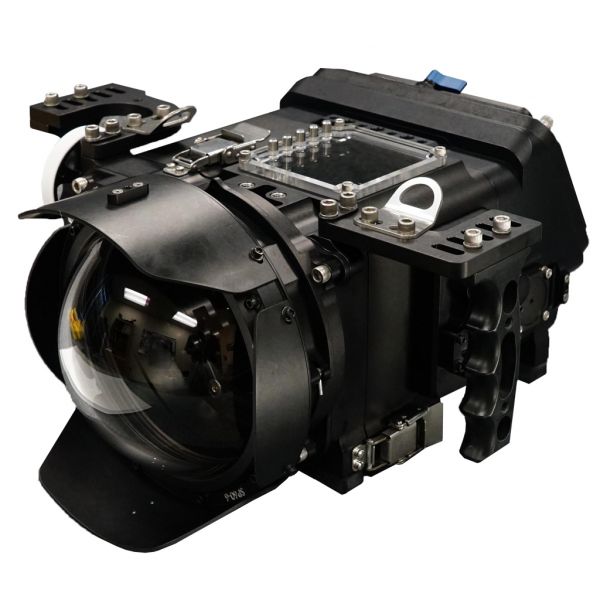

Gates Deep Komodo (DK) Housing for RED Komodo

RED DEEP KOMODO

The RED KOMODO is everything you can expect from RED. The ultra-compact size with high-end specifications is what appeals to many people. This is also the new entry level camera from RED which will be accessible to more people than ever before. Of course Gates cannot stay behind to make a perfectly fitting strong compact housing for this, the Deep Komodo. The housing is made of machined anodized aluminium.

This housing has thought of everything, think of heat dissipation from the camera, space for two batteries (one for the camera and one for the monitor), expansion options by means of mounting points for various accessories, SDI output and for example the extensive vacuum system that is included.

Due to the compact size, the camera is easy to operate, including the aperture that can be operated with the fingertips.

Gates also makes it possible to film underwater and at the same time to monitor above the water with SDI connection. The connection in the housing and the cable also have a gold connection for optimal synchronization and the gates cables are certified. The longest cable available is 30 meters.

The housing comes with various accessories. To complete the housing, you only need the gates extension rings and dome.

The housing comes balanced out of the box, adaptable for the use of various lenses.

CONTROLS
• Master System Power On/Off
• 2x Direct Coupled Lens Gear Drives
• Run / Stop (Switch activated, right thumb)
• Gates Command / Control Module:
o IRIS
o Menu navigation (MENU / SELECT /▲ / ▼ / ► / ◄)
o 4x Presets / Assignables
• ATOMOS LCD - all lower screen focus / exposure touchscreen buttons
• ATOMOS LCD - overlay toggle on / off
• ATOMOS Power

CONSTRUCTION
• Machined Aluminum, Type III Hard Anodized finish
• Stainless steel hardware

DEPTH RATING
• 250 feet / 76 meters

WEIGHT IN WATER
• Fully Adjustable Buoyancy / Trim

WEIGHT IN AIR
• Variable depending on configuration
• ~25 lbs / 11 kg with
o SP60 Dome Port, 2x SPR60-200 Stackable Port Rings, KOMODO™ Camera
o 2x Sony NP-F970 Batteries
o ATOMOS SHINOBI SDI LCD
o Canon 16-35f/2.8L III USM lens

WARRANTY
• 2 Years Renewable. Gates Warranty Details

CAMERA EQUIPMENT REQUIRED
• Cameras:

o RED KOMODO™

• Camera Accessories:

o None
• Media

o CFAST Media compatible with KOMODO™

• Camera prep / setup only (optional)
o RED CONTROL iOS App

• Battery Options
o 2x Sony NP-F970 Batteries or equivalent

• LCD
o ATOMOS SHINOBI SDI LCD

• Lenses
o DSLR (Canon EF / Nikon F), Mirrorless (Canon RF) and Compact Cinema Glass (0.8 MOD or 32 Pitch)
o Laowa Macro Probe (with Gates MLA60 Macro Probe Lens Adapter)
o Max Lens Envelope:
 SPR60 Port Rings
 Max lens overall OD: 5.6 in / 142mm
 Max lens gear OD: 4.25 in / 108 mm / 136 Teeth
 Min lens gear OD: 3.1 in / 79 mm / 100 Teeth
 SPR80 or PR80 Port Rings
 Max lens overall OD: 7.5 in / 190mm
 Max / Min gear OD: same as above.
