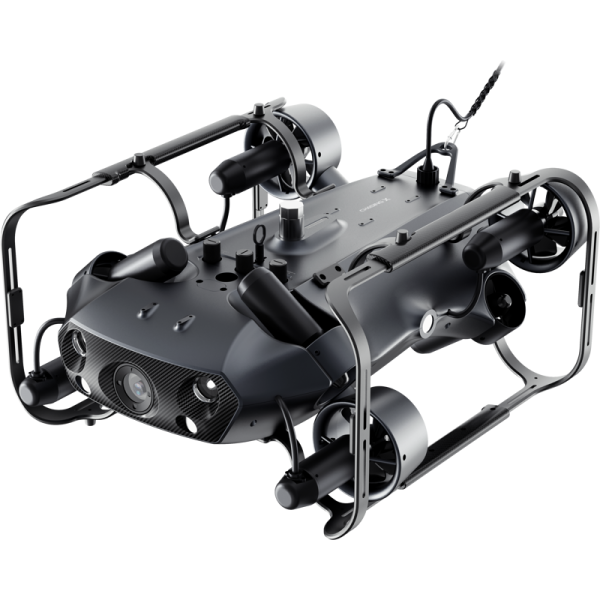

CHASING X ROV

The CHASING X Industrial-Grade Underwater ROV is a revolutionary breakthrough in marine intelligent equipment, designed for high-speed, deep-sea exploration and operations in turbulent waters. Its innovative OctoDrive Power Layout enables precise and stable maneuvering, even under heavy loads. Featuring the world’s first AnchorX Smart Omnidirectional Anti-Current System, this ROV intelligently identifies current direction and speed to optimize positioning, ensuring maximum stability and control in challenging underwater environments.

Impressive Imaging Capabilities

The CHASING X is equipped with a 4K UHD Camera with a hemispherical lens and an innovative electronic pan-tilt system for smooth panoramic shooting. It delivers stable, high-definition visuals even in low-light conditions, enhanced by 12,000-lumen LED floodlights. With a modular design, the camera and other accessories can be easily upgraded or replaced for diverse operational needs.

Enhanced Operational Reliability

The CHASING X’s durable protective frame and modular design ensure reliable performance during long-duration, high-intensity operations. Whether powered by its 1000Wh lithium battery or an optional shore-based power supply, the ROV supports uninterrupted exploration.

Versatile Applications

The CHASING X is suitable for a wide range of industries, including:

• Offshore Drilling and Wind Power Inspections
• Underwater Archaeology and Scientific Research
• Pipeline and Ship Hull Monitoring
• Emergency Rescue and Environmental Protection

Technical Specifications:

• Size: 810 x 636 x 453 mm
• Runtime: Up to 2 hours (battery-powered)
• Power supply: Battery / C-SPSS (Optional)
• Max. depth: 1148 ft / 350 m
• Max. speed: Forward 4.5 knots, Lateral 2 knots
• Max. flow resistance: 4.5 knots
• Operating Temperature: -10℃ to 45℃
• Camera: 1/1.8” CMOS, 8 MP, 4K/30FPS Video Resolution
• LED Brightness: 2 x 6000 lumens
• Remote Control Runtime: ≥6 Hours (7000mAh Battery)
• Storage: Supports up to 1TB SD Card

Camera:

• CMOS:  1/1.8"
• Lens:  F2.2
• Focus range:  0.5m
• Field of view:    160°
• Max. image resolution:  8 Meg Pixel
• Image format:   JPEG / DNG
• Video:   UHD: 3840 x 2160, 4K / 30 FPS   -  FHD: 1920 x 1080 (1080P), 30 / 60 / 120 FPS
• Slow motion:    720P: 6 x (180 FPS)   -   1080P: 4 x (120 FPS)
• Time laps:  4K / 1080P supported
• Video maximum stream:   60M
• Video format:   MP4
• SD card:   Standard 128G, support up to 1T (Removable)

Sensor:

• IMU: Axis gyro / Accelerometer / Compass
• Depth sensor: Accuracy＜±0.25m
• Temperature sensor: Accuracy＜±2℃

LED lights:

• Brightness: 2 x 6000 lumen
• Dimming: Stepless (brightness ajustable via App)
• Color Temperature: 5000K~6000K
• CRI: 90

Charger:

• Power: 50.4V/8A
• ROV charging time: 2.5H
• Remote controller charging time: 2H
