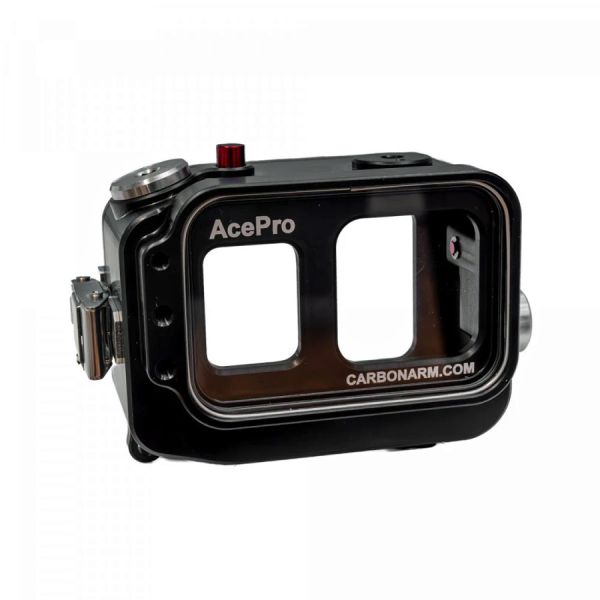

Carbonarm Insta360 Ace Pro & Ace Pro 2 underwater housing

Housing made in aluminum, anodized with 50 micron military treatment to guarantee maximum resistance against wear and salt over time. This housing is shaped according to the new Insta360 Ace Pro/Ace Pro2. All the controls are shown externally with extreme precision. The side hinge allows it to be opened and closed very easily. Presence of a double O-ring seal, double zinc for protection against galvanic currents and a predisposition cap for external battery pack or vacuum system or video output. Arrangement for filter accessories and additional lenses.

On the upper part there is a threaded blind hole M6 with locking pin, that allows to implement any accessories or insert an M6 ball for optional light.
In the lower part the housing is equipped with 5 threaded holes, 2 with metric pitch M6, 3 with Kodak pitch 1/4, which allows to easily fix the housing to a tray. There is a central Kodak pitch hole 1/4.

*Before inserting the camera into the housing, remove the microphone windscreen and the rubber ring on the lens edge (if present). Instead, insert the standard microphone cap included in the package to properly protect the sensor from humidity and ensure full compatibility with the housing.

Specifications:
Max. depth: 250 m
Body: Anticordal Anodized Aluminum 50 micron
Length: 114 mm
Width: 69 mm
Thickness: 55 mm
Weight: 360 g
Immersion weight: 200 g
