AOI Vacuum Analyzation and Wetdetection System M16
€185.00 €152.89
In stock
SKU
AOVWS02M16

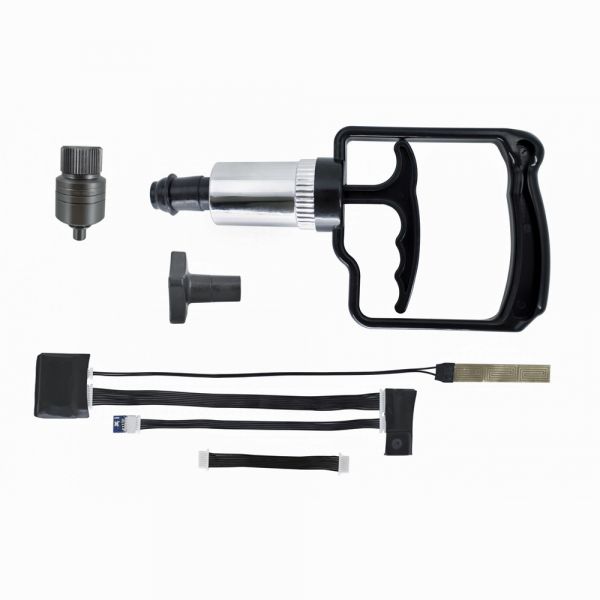

Set to make a vacuum check and leakdetection system in your underwaterhousing with a free M16 port.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
| Valve Fastening | M16 | |
| Valve Material | Black Anodized Aluminum Alloy | |
|
Depth Rated |
100M / 330Ft | |
| Charging Time | 1.5 Hours | |
| Charging Port | 5V, 0.3A Micro-USB charging Port | |
| Power Switch | Sliding ON / OFF Switch | |
| Operation Time Per Full Charge | 4 Days (Powered by 3.7V 110mAH Lithium Polymer Rechargeable Battery) | |
| Vacuum Analyzing Time | Approx. 4 Minutes | |
| Wet Detection | All time Operation | |
| Indicator Signal Output | Piezo Buzzer (Audio Signal) Tri-color LED (Blue, Yellow, Red & Green Visual Signals) |
|
| Dimension | Vacuum Valve | Φ 22 x 34 mm (H) |
| Main Unit | 28mm(L) x 18mm (W) x 7 mm (H) | |
| Signaling & Charging Unit | 30 mm (L) x 14mm (W) x 7 mm (H) | |
| Long Connection Cable | 140 mm (L) x 5 mm (W) | |
| Short Connection Cable | 75 mm (L) x 5 mm (W) | |
| Extersion Visual Signal Board Cable | 120 mm (L) x 3 mm (W) | |
| Weight | Vacuum Valve | 16.5 g |
| Wet Detection | 5.5 g | |
| Power Source | 2.8 g | |
| Accessories | Vacuum Pump Multi Purpose Key |
|
Check the instruction manual here| Manufacturer | AOI |
|---|---|
| Manufacturer | Importer | Manufacturer: AOI LTD., Unit 2, 20/F, Block E, Wah Lok Industrial Centre, 31-35 Shan Mei Street, Shatin, Hong Kong, [email protected] | Importer: UWCameraStore. com, Neon 25, 4751 XA, Oud Gastel, Nederland, [email protected] |
