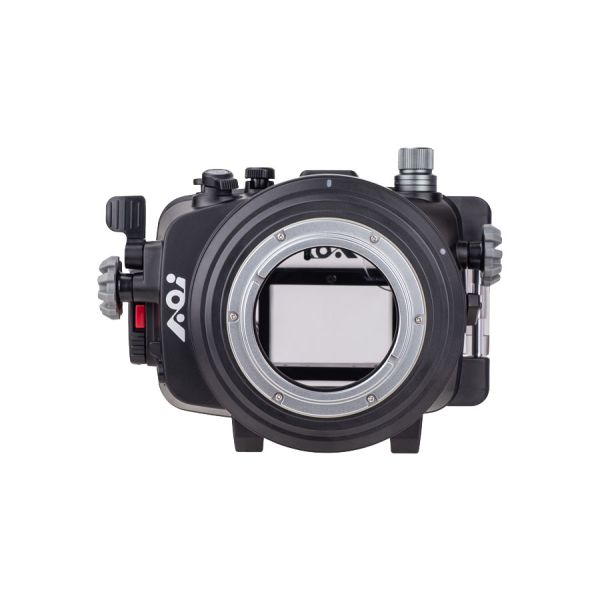

AOI UH-A7CII underwater housing for Sony A7C II

Ergonomic, 60 meters depth rated underwater housing for Sony A7C II Mirorless Full-Frame camera with Sony FE28-60 f4-5.6 lens. The housing has a vacuumsystem and a flash control that also supports TTL (HSS).

Ergonomic, compact underwater housing with built-in TTL flash trigger module

The AOI underwater housing is compact, light and ergonomic and has a maximum depth of 60 meters. The UH-A7CII Housing will come with the built-in TTL Flash Trigger Module and a Wire-less Hot Shoe Connector. The TTL Flash Trigger works with AOI UIS-P1 and Backscatter HF-1 flashes and it also works with most of the Flash Units (controlled by Fiber Optical Cable) in the market by using the Manual Mode trigger.

Built-in Vacuum Analyzation and Wet Detection System (VWS)

After placing the camera in the underwater housing and closing the casing, turn on the vacuum control system. The light will start flashing blue. Then, use the provided pump to create a vacuum in the housing. Continue pumping until the yellow light stops flashing and remains solid. Place the cap on and wait for 4 minutes. The system will now automatically check if the housing is indeed vacuum-sealed. The result of this test will be indicated automatically.

The underwater housing is also equipped with a leak detector. If water is detected inside the housing, a red light will illuminate and an audio alarm will sound.

Specifications of the underwaterhousing for Sony A7C II:

Main material: PC + GF
Water leakage protection: Built-in Vacuum Analyzation and Wet Detection System (VWS)
Flash control: a) SONY TTL (support HSS), b) Manual Flash (without Pre-flash)
Battery operation time: Approx. 2 days (based on 3 dives/day and 1 hour/dive)
Dimensions: 197.1mm(L) X 152.7mm(W) X 138.9mm(H)
Depth rating: 60 Meters
Lens port system: AX port system
Charging: by USB charger dc5v, 0.1a (not included)
Charging time: Approx. 1.5 hours for a full charge battery charging
Power source: Built-in Rechargeable Lithium Polymer Battery (3.7V 110mAH)
Weight: approx. 1302.2g on land (housing body and body cap)
Weight underwater : approx. -188.0 g (with sony ilce-7cii camera, battery and fe 28-60mm f4-5.6 lens,  flp-103 port and hot shoe connector

The housing comes with: AX flat port FLP-103 for Sony FE28-60 f4-5.6 lens, zoom gear for Sony FE28-60 f4-5.6 lens, port front cap, hot shoe connector, camera lens release attachment, spare main o-ring, spare secondary o-ring, USB-C charging cable, spare o-ring for vacuumvalve cap, vacuum handpump,o-ring remover, lenshood, extended shutter release lever, silicagel, o-ring grease, lanyard, cleaning cloth.

Check the compatible AX port chart here.
