AOI Q1 Ultra Compacte Flitser UCS-Q1 (2027 editie) - wit
The AOI UCS-Q1-WHT Underwater Ultra Compact Strobe (2027 Edition) is a compact underwater strobe with a new Auto Mode that uses onboard flash emulation for automatic exposure with cameras featuring a built-in flash. Manual power control remains available with seven output levels.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
The AOI UCS-Q1-WHT Underwater Ultra Compact Strobe Q1 (2027 Edition) is a compact white underwater strobe with manual control and Auto Mode for cameras with a built-in flash.

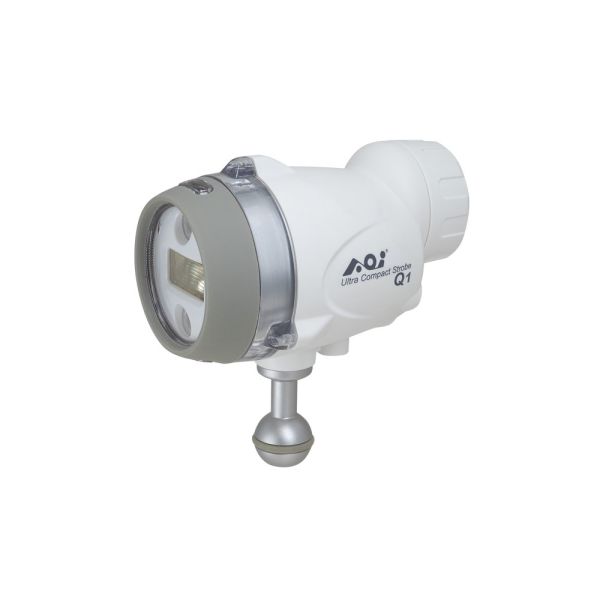

AOI UCS-Q1-WHT Underwater Ultra Compact Strobe Q1 2027 Edition
The AOI UCS-Q1-WHT adds onboard flash emulation to the compact Q1 strobe platform. The strobe can copy the camera’s built-in flash for automatic exposure with supported cameras. Manual control remains available with seven power levels from 1/64 to Full. The white body uses polycarbonate and glass fibre, with a depth rating of 60 m (≈197 ft).
Key specifications
- Model number: AOI UCS-Q1-WHT
- Main body colour: White
- Guide Number: GN 22
- Depth rating: 60 m (≈197 ft)
- Flash modes: Auto Mode and Manual Mode
- Manual power: 1/64, 1/32, 1/16, 1/8, 1/4, 1/2 and Full
- LED focus light: 700 lumen
- Beam angle with diffuser: 85° horizontal and 85° vertical
- Power: 2x 18650 Li-ion rechargeable batteries, not included
Product advantages
The main update is Auto Mode via onboard flash emulation. This allows automatic exposure with cameras that use a built-in flash. The strobe also keeps full manual control for photographers who prefer fixed output. Existing Q1 accessories remain compatible with the 2027 Edition.
Compatibility and in-the-box contents
The strobe is intended for cameras with a built-in auto flash and fibre optic triggering. It uses a non-removable 1" ball mount.
- Strobe diffuser SD-01
- Control knob extension CKE-01
- Spare O-ring set SOR-01
- O-ring remover ORR-02
- Battery storage case BSC-18650-2
- Silicone grease 1.5 g (≈0.05 oz)
Full specifications table
| Model | AOI UCS-Q1-WHT |
|---|---|
| Colour | White |
| Material | Polycarbonate and glass fibre |
| Depth rating | 60 m (≈197 ft) |
| Guide Number | GN 22 |
| Colour temperature | 5600K, 5000K with diffuser |
| Recycle time | 0.85 seconds at full power |
| Number of flashes | 1400 flashes at full power with 3500 mAh batteries |
| Dimensions | 125 x 77 x 131 mm (≈4.9 x 3.0 x 5.2") |
| Weight on land | Approx. 530 g (≈1.17 lb) |
| Weight underwater | Approx. 80 g (≈0.18 lb) |
Setup and maintenance
Check the O-rings before each dive and apply a thin layer of silicone grease when needed. Use two 18650 Li-ion rechargeable batteries with the required output current.
| Manufacturer | AOI |
|---|---|
| Manufacturer | Importer | Manufacturer: AOI LTD., Unit 2, 20/F, Block E, Wah Lok Industrial Centre, 31-35 Shan Mei Street, Shatin, Hong Kong, [email protected] | Importer: UWCameraStore. com, Neon 25, 4751 XA, Oud Gastel, Nederland, [email protected] |
| Max. depth | 60 meters |
| Flash mode | Manual, TTL |
| Color temp. | 5600K |
| Beam Angle | 85° |
