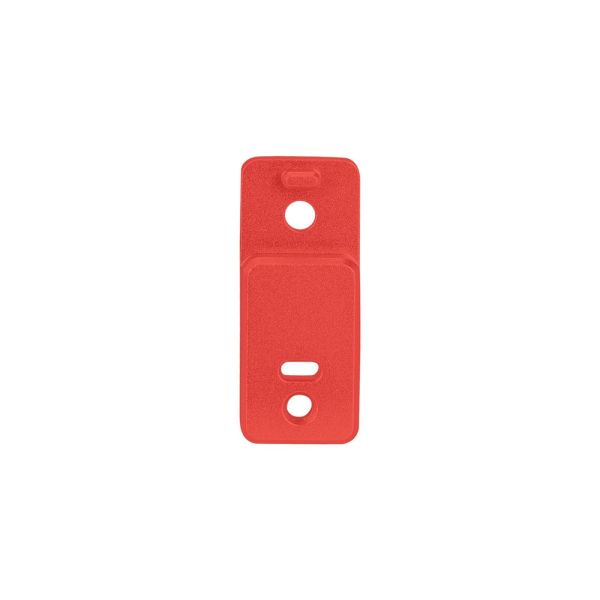

AOI MDS 01 Extension Plate 20mm (4 Pieces) - Red
Red 20 mm (≈0.8") extension plates for the AOI Modular Tray System. Often used together with EP5 extension plates for larger frame configurations.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
The AOI MDS-01-EP2-4-RED consists of four compact extension plates for the AOI Modular Tray System. These modular spacers are often used together with the larger 50 mm (≈2") EP5 extension plates. The EP5 plates only provide additional frame width. The EP2 plates additionally add extra height and extra width where required.
Additional space for larger underwater housings
The four EP2 extension plates are mounted around the frame for larger configurations within the AOI MDS system. This setup is used for larger AOI OM System and Sony underwater housings where more internal frame space is required.
Flexible modular frame configuration
By combining EP2 and EP5 extensions, the tray system can be adjusted in multiple directions. This allows both the frame height and width to be configured for different underwater housings and tray setups.
Included accessories
- 4x AOI MDS-01-EP2 extension plates
- 8x M3 screws
Specifications
| Model | AOI MDS-01-EP2-4-RED |
| Colour | Red |
| Material | Hard anodised aluminium alloy |
| Dimensions | 20 mm × 12.5 mm (≈0.8" × 0.5") |
| Weight | 3.75 g (≈0.008 lb) |
| Manufacturer | AOI |
|---|---|
| Manufacturer | Importer | Manufacturer: AOI LTD., Unit 2, 20/F, Block E, Wah Lok Industrial Centre, 31-35 Shan Mei Street, Shatin, Hong Kong, [email protected] | Importer: UWCameraStore. com, Neon 25, 4751 XA, Oud Gastel, Nederland, [email protected] |
